Description
Technical Specifications
- MODEL: VNS/16A
- Tank: H. D. P. E.
- Tank capacity: 16 ltr
- Pressure vessal: H. D. P. E.
- Spray lance: Fibre glass
- Normal working pressure: 3 bar
- L x W x H (in mm): 490 x 180 x 580
- Weight: 4 kg (approx)

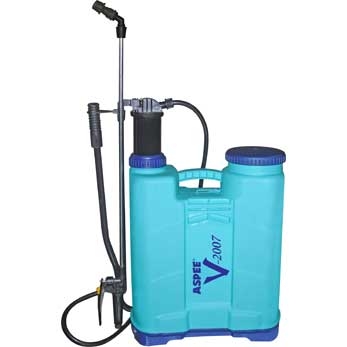

V-2007 KNAPSACK SPRAYER (VNS16A)
16 lit. capacity, injection molded tank, 110cm long delivery hose, plastic trigger cut-off valve, 60cm long S.S. Lance, flat fan & hollow cone nozzle. Plastic pressure chamber detachable bottom well & mechanical agitator fixed with pressure chamber
Special Instructions
- Total weight of the sprayer is less than 4 kgs
- Bigger pressure chamber capacity ensures pulsation free spray
- Double piston & double ball valve for quick pressure build up and retention
- Bottom well can be opened from the tank with the help of pressure chamber
- Mechanical agitation
- Right or left hand operation
- No tool require for repair and maintenance
